EYK Wireless Microphone System Set - EYK 4CH UHF Wireless Microphone Set- EYK 4CH Microphone System - 4CH Wireless Microphone System



Features:
✓UHF Band Fixed Frequency

• 600.20MHz，607.70 MHz，609.50 MHz，623.00 MHz
• 615.90 MHz，649.60 MHz，657.50 MHz，664.20 MHz
• 621.50 MHz，628.00 MHz，636.80 MHz，643.70 MHz
• 641.50 MHz，645.70 MHz，662.20 MHz，672.30 MHz
• 642.20 MHz，644.40 MHz，656.80 MHz，660.80 MHz

Please tell me which frequency are you want, or we will sent it random.

✓ Transmitter: 4 pcs Whole metal handheld microphones.

✓ Receiver front: Metal Box , Power Switch, Backlit screen, Individual Volume Knob, AF/RF Indicator.

✓Receiver back: Power interface, FOUR XLR individual outputs and one 1/4"" Mixed output, TWO Antenna interface
✓Range: up to 200 feet (up to 60 meters), suitable for karaoke, speech, party, church, DJ, etc.
✓Transmitter battery: 8*1.5V AA(not included).



Receiver front panel function:

1. AF Led Indicator
When RF indicator is on, microphone A/B/C/D power is on
1) Microphone A/B/C/D pick up the sound, the AF light is on
2) no sound is picked up, the AF light is off.

2. RF Led Indicator
When the receiver is on "working" status,
1) Microphone A/B/C/D no power, left/right RF light is off
2) Microphone A/B/C/D is on, left/right RF light is on

3. Backlit Screen: the screen will not change.

4. Volume Knob:
clockwise: volume from low to high
anticlockwise: volume from high to low.

Receiver back panel function:
1. Mic A, Mic B, Mic C and Mic D XLR socket:

• 1) Need XLR cable:(not included in the package)

2) From the socket,

• A) you can link the receiver to audio mixer
• B) then you can control the microphone A , microphone B , microphone C and microphone D separately.

2. Mix out socket:

• 1) Need 6.35mm plug cable.(included in the package)
• 2) From the socket,

A) you can link the receiver to amplifier/speaker and etc.
B) you only can control the microphone A B C D together.

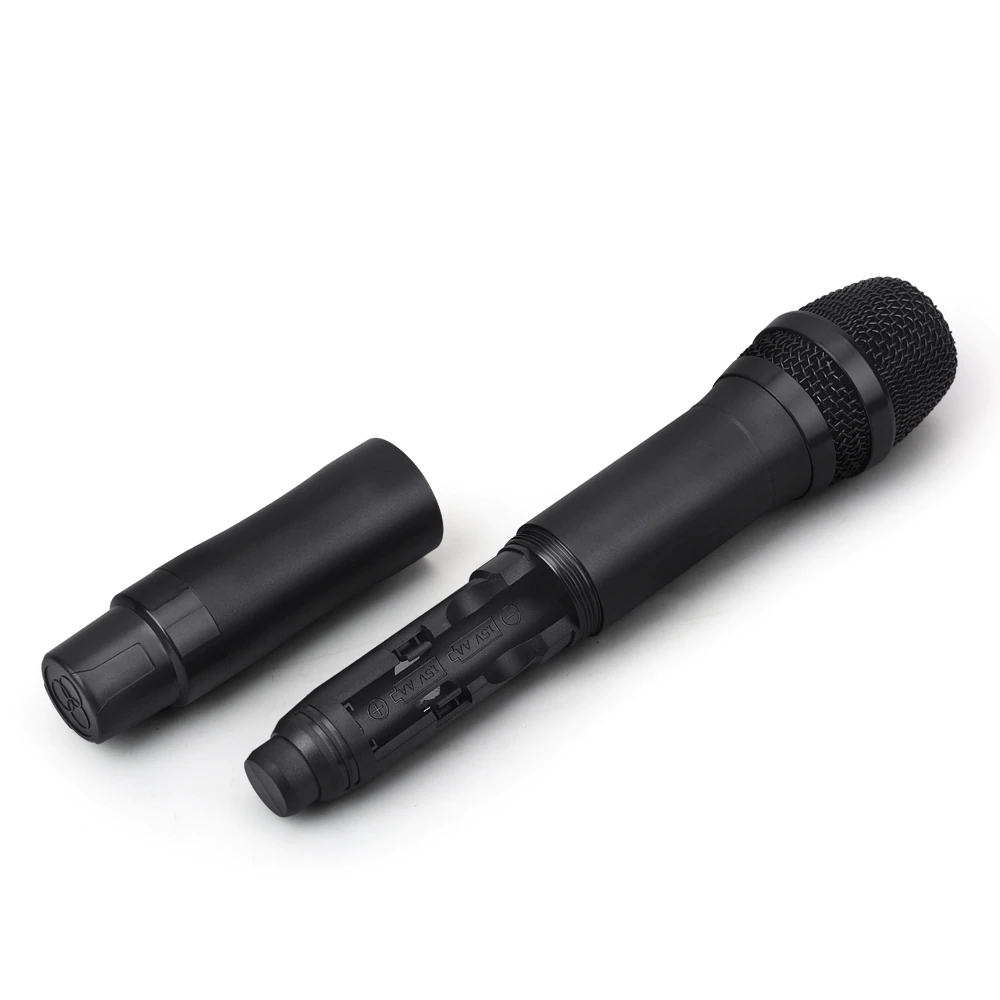

Transmitter:
1. Material: Whole Metal Handheld Mic
2. Screen：HD Backlit Screen (Can not change)
3. Power Switch：Touch Design

4. Cartridge: High Sensitivity Microphone Core

• Type: Dynamic
• Polar pattern: Cardioid

"Received the parcel quickly. EYK Wireless Microphone System Set came well packed in one small box. There were no problems. Fully meets the description, it is perfect in our church. 5 Stars for My Modern Ideas!"
~Anna May Durant Richmond,VA~"

System Specifications:
Frequency Range: UHF 600-700MHz(We have 5 set frequency)
Oscillation Mode: Quartz Controlled Fixed Frequency
Frequency Stability: ±0.005%
Dynamic Range: ＞110dB
Maximum Frequency Deviation: ±45KHz
Frequency Response: 60Hz-18KHz（±3dB）
S/N: >105dB
T.H.D: ≦0.5%
Working range: 60Meters (Without obstacle)
Receiver Specifications:
Wireless Interface: BNC/50WΩ
Sensitivity: 12dB（80dBS/N）
Spur Suppression: ＞80dB
Power Supply: DC 11-16V（rated 12V）

Transmitter Specifications:
Output power: 10mW
Spur Suppression: -60dB
Power supply: 2x1.5V AA battery
Battery life: About 10 hours

Receiver:
Width: 480mm (19in)
Length: 180mm (7in)
Height: 45mm (1.8in)

Transmitter:
Length: 260mm (10in)

Package Inclusion:

*4 x Microphone
*1 x Receiver
*1 x Audio cable
*2 x  Antenna
*1 x Power adapter
*1 x User manual
*4 x Anti-slip ring
